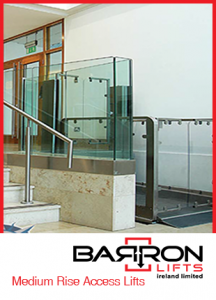

The medium rise access lift provides an ideal solution for access up to 2 metres. At 300 kg the lift can accommodate a wheelchair user and an attendant. The lift is suitable for internal or external use in all types of private, public and commercial buildings.
Application
The Disabled Platform Lift provides an ideal solution for Wheelchair access to different levels. The Flexible design, high build quality and dependable automatic screw drive makes this lift suitable for all kinds of private, public and Commercial buildings.
Features
- Double Screw and nut drive
- Easy and Safe running
- Internal or External Use
- No pit necessary
- CE marked
- Easy to install
- Safety Device under the lift
- Emergency Lowering
- Constant Pressure Buttons
- Walls and doors are made in transparent, polycarbonate newline flooring
- Softstart/stop
- Any RAL-colour powdercoating
- CE Marked
Technical Specifications
- Lifting Capacity 300 kg
- Lifting Height 500 mm – 2 metres
- Electrical Supply 230V or 380V
- Motor 2.5Kw
- Lifting Speed 0.06m/s
Options
- Bellows (pit required)
- 90 Degree Entry
- Shorter Platform
- Platform Key Controls
- Automatic Door
- Altro Flooring
