The Compact Home Lift For Life

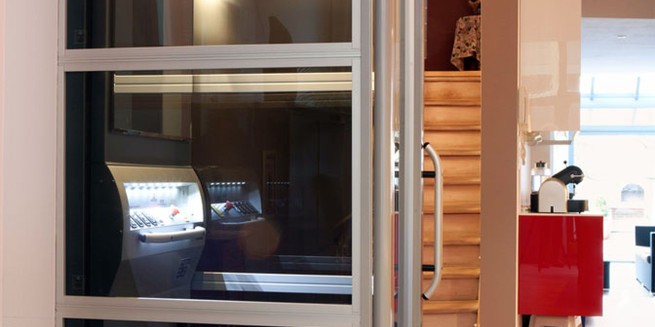

With the newest technology available in the industry, Gartec only install the best and more modern home lifts. Customers are always surprised at the minimal disruption in the home, especially when installing the 4000 home lift; a versatile and modern looking lift which blends into any home. The 4000 model is the smallest lift Gartec offer, carrying a maximum of two people.

With a capacity of 225kg (2 persons), travel height of up to 13m, as well as a choice of 3 platform sizes and many other options, the 4000 from Gartec’s home lift range, can be tailored to meet you requirements. As it will become a part of your home, Gartec understand the importance of getting the appearance right first time, before installing.

If you require a slightly larger lift for your home, our range of platform lifts are versatile and easily installed within a domestic environment.


Providing Customer Satisfaction

The 4000 domestic lift has had some great feedback from our happy customers;

“…I thought putting a lift in would be a huge job, but it was so quick and easy. Gartec’s team were friendly and knowledgeable, kept me informed, worked efficiently, and even tidied everything up before they left! A very easy home improvement to make.”

- Mary Jones, Abingdon

Info:

  • Drive System: Patented screw/nut system
  • Rated speed: max. 0.15 m/s
  • Platform control: "Hold to run", the button has to be kept pressed during the ride
  • Landing control: One-touch call
  • Technical compliance: European Machinery Directive 2006/42/EC European standard EN 81-41
  • Rated load: 250 kg / 2 persons
  • Number of stops: max. 6
  • Number of doors: max 2 doors per floor
  • Pit: 50 mm (no pit is required when there is a threshold)
  • Environment: Indoors
  • Power supply: 1-phase 230V 50Hz/6.6A/16A slow
  • Emergency lowering: Battery-powered emergency lowering
  • Control voltage: 24 V
  • Motor: 1.5 kW
For more information, download our pdf on the Aritco 4000

Click here to download Aritco 4000 PDF Drawing>>>
