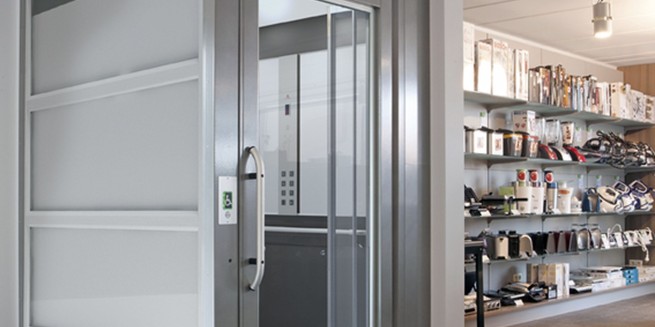

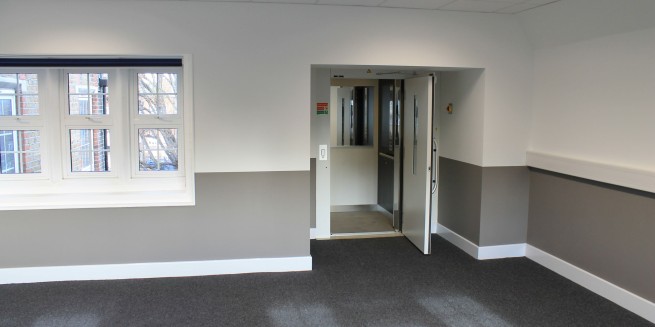

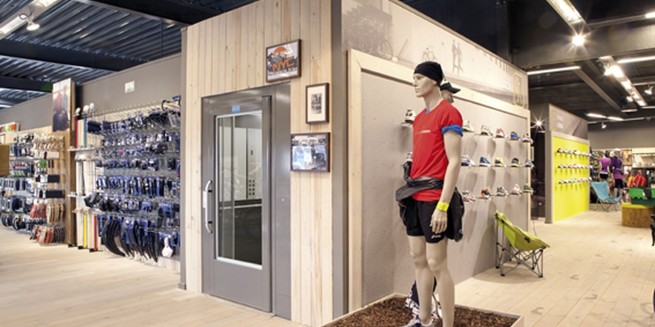

Aritco 9000 is our cabin lift for the accessibility market. The lift is designed to meet all requirement for quality, safety and service. It is a perfect fit for tough and demanding environments such as schools, shops and residential buildings.

Aritco 9000

  • Technical compliance: European Machine directive 2006/42/EC
  • Lift type: Cabin lift
  • Drive system: Patented screw/nut system
  • Rated speed (max): 0,15 m/sartcio 9000
  • Travel height: 21501) -13 000 mm 1) Opposite entry: min 2 150 mm Single entry : 2 300 mm for 2000 mm door opening height
  • Number of stops: Max. 6 stops per lift
  • Number of landing doors: Max. 6 doors per lift
  • Pit: 75 mm (no pit is required when there is a ramp)
  • Entry: Single entry: A, B or C-side Opposite: A and C-side
  • Top height: Minimum 2400 mm
  • Cabin control: Automatic ”one-touch” with cabin doors
  • Landing control (on door): One-touch call
  • Environment: Indoor
  • Emergency lowering: Battery operated emergency lowering
  • Control voltage: 24V
  • Motor: 3 kW
  • Power supply: 3-phase 400V 50 Hz/5.2 A/16 A slow
  • Rated load: 400 kg

Travel height Travel height: 2 150*-13 000 mm. Minimum travel height:
  • 2 150 mm when not having landing doors on the same side. E.g. When having opposite entry A and C side. The minimum travel height is due to the fact that you need to get up on the cabin roof to make service.
  • 2300 mm when having landing doors on the same side. E.g. when having two doors on the same side; A, B or C side. Due to the height of the door frame and threshold on the landing doors.
Cabin Aritco 9000 is available in 2 different cabin sizes (cabin floor area). 1: Cabin floor area A/C xB (mm) 1000 x 1400
  • Max load (kg) 400
  • Power supply 400 V 3-phase
2: Cabin floor area A/C xB (mm) 1100 x 1400
  • Max load (kg) 400
  • Power supply 400 V 3-phase
Please note that the information for Aritco 9000 is preliminary and can be subject to change. For more information please contact your Aritco sales representative
